High Quality Clean Room / Factory / Hospital Clean Room HVAC Air Handling Unit AHU With Customized Design

1 Set
MOQ
$5,000.00(1 - 4 Sets) $4,500.00(5 - 9 Sets) $4,000.00(>=10 Sets)
prezzo
High Quality Clean Room / Factory / Hospital Clean Room HVAC Air Handling Unit AHU With Customized Design
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Applicable Industries: Hotels
Condition: New
Type: Air Handling Unit
Operating Voltage: 380/400 VAC
Mounting: Floor Standing
Warranty: 1 Year
Dimension(L*W*H): CUSTOMIZED
Key Selling Points: Long Service Life
Airflow: 60000m³/h, 5000-60000m3/h, cutomized
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, PLC, Engine
Weight (KG): 1200 KG
Product Name: air handling unit prices
Application: clean room/factory/hospital
Function: control temperature&humidity, air purification, cooling air
Material: Galvanized Plate Shell
Cooling capacity: 0-300kw, customized
Heating capacity: 8.-163kw, customized
Installation: floor standing or ceiling mounted
electronic components: FUJI, Japan
Power supply: 380-415V/3Ph/50Hz
Informazioni di base
Termini di pagamento e spedizione
Packaging Details: export wood case
Supply Ability: 20 Set/Sets per Month
Descrizione di prodotto
Product Description

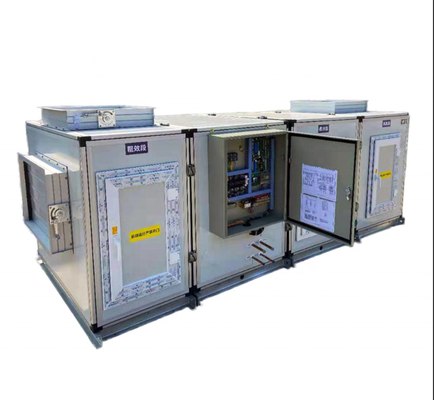

Air cooled constant temperature and humidity air handling unit/ AHU unit for Operation room and clean room

* Customized specification
* Control temperature, humidity, purification, air return, fresh air
* Pre and medium purification
* Adopt famous Panasonic air compressor
* Complete set unit ready for shipment, no need assemble
* Big airflow is enough for Multiple operating rooms or clean room
Clean room
It refers to the removal of particulates, harmful air, bacteria and other pollutants in the air within a certain space, and the control of indoor temperature, cleanliness, indoor pressure, air velocity and air distribution, noise, vibration, lighting, and static electricity in a certain space. A specially designed room within the scope of demand. That is, no matter how the external air conditions change, the room can maintain the original set requirements of cleanliness, temperature, humidity, and pressure.

For many industries, it is ne cessary to build dust-free purification workshops, but different industries and different productshave different requirements for the purification level of dust-free workshops, even if it is the same industry, in different production environments, different purification workshops The production tasks are also different, and the requirements for the purification level of the clean room are also different.


Cleanliness

The cleanliness grade of clean room is generally divided into class100, class1000, class10000, class100000 etc.
Cleanliness grade
Maximum particles/m3
FED STD 209E

≥0.1 μm
≥0.2 μm
≥0.3 μm
≥0.5 μm
≥1 μm
≥5 μm
equivalent
ISO 5
100,000
23,700
10,200
3,520
832
def
class 100
ISO 6
1,000,000
237,000
102,000
35,200
8,320
293
class 1,000
ISO 7
c
c
c
352,000
83,200
2,930
class 10,000
ISO 8
c
c
c
3,520,000
832,000
29,300
class 100,000
ISO 9
c
c
c
35,200,222
8,320,000
293,000
room air
Details Images
The air is purified and cooled by AHU system and supply to different area of clean room through air duct
Recommend Products
Air shower
FFU
Auto sliding door
clean room door
stainless steel storage cabinet
clean room sink
Project Case

Sri Lanka

Electronic workshop
clean room

Philippines

Food factory
clean room

Malaysia

Bird's nest workshop
clean room

Shandong, China

Pharmaceutical Factory
clean room

Singapore

Disposable Face mask
clean room

Australia

Milk canning workshop
clean room

France

Cosmetics workshop
clean room

Mongalia

Electronics factory
clean room

Title goes here.

Chemical laboratory
clean room
Company Introduction
Dongguan Amber Purification Engineering Ltd founded in 2018, it focuses on operating room engineering construction, clean room engineering construction and related hospital and clean room furniture manufacturing. We have rich export experience, and provide operation room, clean room products to Arica, Southeast Asia and South Asia, Europe, USA etc, we have professional foreign trade team, drawing engineer, we are your best choices.

Certificate we have:
Our production line:
Packing&Shipping
All goods packing by export wood case, protect goods in good condition
