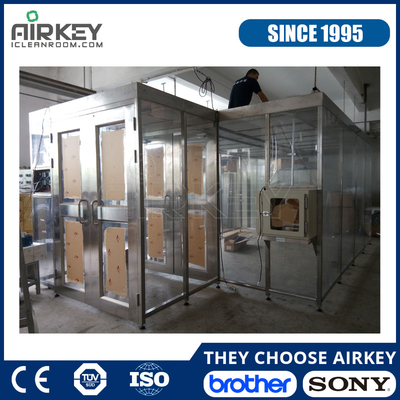

Tailored ISO 7 Clean Room Standard Clean Room with Pass Box
I. MODULAR CLEANROOMS: GOOD ENOUGH OR BETTER?
Modular Cleanrooms, with customized sizes from 10 to about 200 square meters are not just an acceptable, but often a preferred alternative to conventional, brick-and-mortar cleanrooms due to lowers costs and unique, flexible capabilities:
· Lower investment and installation costs by not over-designing the whole cleanroom to meet the highest level of cleanliness required
· All-stainless steel, free-standing frame, including ceiling grid and hardware; no external bracing required
· Bi-swing interlocking door with self-closing hinges to avoid cross contamination and maintain room pressure
· HEPA Fan Filter Units (FFUs) ensure dust free environment and cleancliness as required.
· Displays cleanroom conditions in real time
II. TYPE OF CLEAN ROOM
1. Softwall Clean Room
'Softwall Clean Rooms' have the most economical type of modular cleanroom wall construction. Clear and flexible panels are mounted onto a robust, stainless steel frame, enclosing the clean area. PVC panels overlap to ensure the walls of the softwall clean room are effective barriers which won't breach, when in position, or allow particles to enter the room. The positive airflow pushes air down through the cleanroom, allowing particles to be flushed out through the outlet at the bottom of the room.
2. Hardwall Clean Room
Hardwall clean room has a high-integrity modular cleanroom wall construction which also allows full visibility and great tensity. Stainless steel frame creats freestanding structure so as to save space and costs. The positive airflow pushes air down through the cleanroom by FFUs, allowing particles to be flushed out evenly through the outlet at the bottom of the room. Quantity of FFUs are determined according to the size and clean class of the clean room. Airkey's engineer will calculate such parameters as are necessary for the clean room.
III. FIELD OF APPLICATION
Bio-pharmaceuticals, medical treatment, food, LCM, camera module, touch screen, optical module, FILM, and other production or experimental environment;
IV. STRUCTURE
CONFIGURATION
Control Panel | Self-developed integrated control panel installed to adjust relevant parameters and also control the modular clean room |
Ceiling Cover | Protect ceiling light modules and fan/filter units from cleanroom wash-downs with durable polypropylene covers. |
Acrylic Wall | Offer full visibility and outstanding tensile strength. These economical panels are lightweight and easy to clean. |
Pass Box | An optional device for transferring objects in or out of clean room so as to avoid cross contamination. Pass boxes have electronic interlocking functions to maxmize the efforts to maintain cleanliness |
FFU | The core of modular clean room which filter the fresh air into clean air into the clean room so as to maintain clean area from ISO 5 to ISO 9 |
Pressure Damper | Improve safety and lessens repairs costs by withstanding wind gusts and also maintaining stable pressure |
V. SPECIFICATIONS
