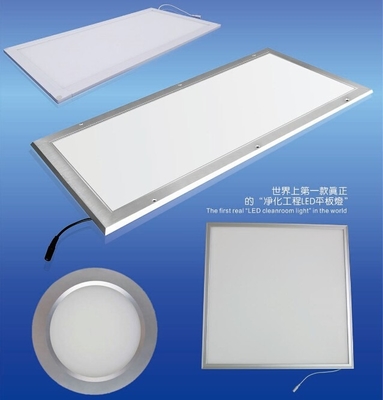

Diffuse Reflecting Through Light Guide Plate ONN-P Cleanroom Light Fixtures Led Light Panel 2x2

1 Piece
MOQ
Diffuse Reflecting Through Light Guide Plate ONN-P Cleanroom Light Fixtures Led Light Panel 2x2
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Color Temperature(CCT): PURE WHITE
Lamp Luminous Efficiency(lm/w): 100
Input Voltage(V): 100-260
Lamp Power(W): 24
Lamp Luminous Flux(lm): 1800-5000
CRI (Ra>): 80
Working Temperature(℃): -18 - 45
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum
IP Rating: IP54
Model Number: ONN-P
Light Source: LED
Item Type: Panel Lights
Warranty(Years): 3
Certificazione: CCC, ce, EMC, FCC, RoHS
LED Light Source: smd 5630
Item type: Cleanroom Lighting Fixtures Led Light Panel 2x2
Voltage: 110-260V
Power Rating: 8W/12W/20W/36W/40W/72W
Light source: SMD 5630
Frame meterial: Aluminum / Stainless steel
Working style: Diffuse reflecting through Light guide plate
lifespan: 50000 Hours
View angle: 170°
Installation: embed mounting / ceiling type
Dimension: 300*300 300*600 600*600 300*1200
Informazioni di base
Certificazione: CCC, ce, EMC, FCC, RoHS
Model Number: ONN-P
Termini di pagamento e spedizione
Packaging Details: Cleanroom Lighting Fixtures Led Light Panel 2x2 1pcs/ inner box ; 10pcs/ outer box According to customr's requests
Supply Ability: 100000 Piece/Pieces per Month Cleanroom Lighting Fixtures Led Light Panel 2x2
Descrizione di prodotto



ONN-P Series   100-260V    Cleanroom Lighting Fixtures Led Light Panel 2x2





 Application :






Purification Space: dust-free plant,electronic factory,hospital,hotel ,office ,home , school , meeting room , dust-free plant of bakery and confectionery,plant of pharmaceutical fact





Product Features :





1 . Lights on both sides ,  primary ray is very soft after diffuse light through light guide plate .


2 . Stainless steel frame and aluminum backplate,ensure good heat dissipation.



3 . The appearance is small and thin,beautiful and clean,occupies less space,the workmanship is fine and also has soft light.



4 . ONN-P series products adopt hi-power chips imported from Taiwan,this light source is with small size,lower thermal resistance,fine thermal conductivity,lower heat dissipation,which is good choice for lighting fixture.



5 . Big allowance design,long lifespan capacitance,external driver,sharply increase the lifespan of driver,modular design,easy to replace once the driver failed.



6 . Four plugs of srew hole is made of white EVA foam , ensure waterproof ,dustproof , rustproof and beautiful appearance .


7 . Seamlessly install . The appearance , dustproof and thermal conductivity have been highly uniform .


The Value-added services which ONN can supply to you :



1 . ONN can supply LED lighting solutions of Specific projects to you

2 . ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers


Technical Parameters :






BrandONNSurface Temperature<50°C
Light sourceSMD5630MountingAssemble and install,embed
Lifespan of light source50000hoursPlace of originalShenzhen. China
View angle170°IP gradeIP54
Voltage110-260V Material6063 Aluminum / light guide plate
Uniformity>90



Classify :



P series led panel light can be divided into following types according to different  Power rating and Size.

You can choose as your needs and preference  .



Model SizePower(W) Luminous flux densityLED quantity
ONN-P3030A300*300* 9mm12W900lm24pcs
ONN-P3060A300*600* 9mm20W1500lm40pcs
ONN-P120151200*150*9mm36W1500lm160pcs
ONN-P30120A300*1200*9mm40W2800lm80pcs
ONN-P6060A600*600*9mm72W4800lm160pcs
ONN-P6060B600*600*9mm40W2900lm80pcs
ONN-P60120A600*1200*9mm72W5100lm160pcs
